In the beginning of the 60s, race vehicles from F1 to sports activities vehicles nonetheless appeared like their 50s predecessors with entrance engines and curvaceous our bodies — with a solely a small contingent beginning to use mid-engines. By the last decade’s finish, the vehicles appeared radically completely different with the onset of the aerodynamics revolution. Automobiles had entrance and rear wings, radiators within the midsection, underfloors, and monocoque tubs.

Now we have Jim Corridor to thank for that radical evolution. He was a real revolutionary who pioneered aerodynamic downforce, floor results, semi-automatic transmissions, and torsional rigidity.

Corridor is probably the most influential car designer of the second half of the twentieth century. Time to see how this legendary 87-year-old Texan launched ideas that redefined the type of the race automotive to what we’re nonetheless utilizing to this present day.

Jim Corridor driving a Lotus F1 automotive in 1963.

Driving for Carroll Shelby

Jim Corridor was born in Abilene, Texas, in 1935 and obtained into novice sports activities automotive racing in California the place he was attending CalTech for a mechanical engineering diploma. When a job at GM engaged on the Corvette evaporated as a result of a recession, Corridor joined his brother Dick working for Carroll Shelby Sports activities Automobiles in Dallas.

Since Corridor had some racing expertise, Shelby — ever the salesperson — entered Corridor in native sports activities automotive occasions. He was a really expert driver behind the wheel of the highest equipment of the occasions, so he continuously received. Shelby would tout that if “a rookie” may win in it, then it should be good.

Corridor began getting observed and entered his personal Lotus-Climax on the 1960 U.S. Grand Prix at Riverside. (Corridor’s father was a profitable oilman, so he had the means.) The younger driver was holding the fifth place, in a dated automotive, till it had a mechanical failure. Corridor raced in one other 12 System One races, along with his closing season in 1963 for the British Racing Partnership group, managing respectable fifth and sixth finishes that 12 months.

The Delivery of Chaparral

Two California automotive builders Dick Troutman and Tom Barnes approached Jim Corridor to again a brand new sports activities automotive design, which he did by ordering two of the vehicles. He named the automotive the Chaparral, however this automotive was not of his design.

In 1962, Corridor and his companion Hap Sharp determined to start out constructing their very own race vehicles in Midland, Texas. They requested Troutman and Barnes for permission to make use of the title, they usually obliged the request. The revolutionary Chaparral Automobiles was born.

Chaparral Automobiles had been designed to compete within the U.S. Highway Racing Championship and different sports activities automotive collection. Corridor benefited from his sturdy ties to Common Motors who supplied an excessive amount of technical help behind the scenes. Chaparral beneath Corridor and Sharp developed ten fashions, starting with 2A and ending with the groundbreaking 2J.

First Composite Monocoque

Proper out of the gate, Chaparral got here out with a blockbuster, the 2A. With new advances in supplies pushed by the aerospace trade, Corridor and Sharp constructed the primary race automotive with a composite chassis — setting the course for right this moment’s carbon fiber tubs.

The 2A’s monocoque was constructed from GRP, or glass strengthened plastic, aka “fiberglass.” Corridor understood the astounding properties of this revolutionary materials earlier than anybody else. The fiberglass was not solely considerably lighter than the usual metal chassis, nevertheless it was additionally stronger which supplied torsional rigidity that improved traction and energy supply. Moreover, the 2A featured modern aerodynamic approaches that may be developed in later Chaparrals.

The 2A debuted on the Los Angeles Time Grand Prix in October 1963. With Corridor behind the wheel, he instantly took the pole place in entrance of an all-star area of drivers that included Jim Clark, Graham Hill, John Surtees, Dan Gurney, and A.J. Foyt, to call just a few. Within the race, Jim Corridor’s new creation was within the lead for a lot of the race till {an electrical} hearth sidelined him. Nonetheless, the promise of his first automotive was unmistakable.

In the course of the subsequent 1964 and 1965 seasons, the Chaparral 2A dominated the home scene. In 1965, the corporate received 16 occasions out of twenty-two begins. The most important win was the 1965 12 Hours of Sebring the place the 2A, in a driving rainstorm, outpaced the Ford and Ferrari manufacturing unit groups to take the victory.

First Semi-Automated Transmission

Subsequent up was the 2C (“2B” was skipped to not confuse it with a GM mannequin) that, for a while, went utterly undetected by the competitors. Corridor designed and constructed a gearbox that didn’t require the motive force to depress the clutch, simply transfer the selector to the right place and go.

This innovation freed the motive force from repetitive movement and allowed him to make use of his left foot for different actions. This idea is the forebear of how fashionable race vehicles are pushed, together with in almost each race automotive which makes use of paddle shifters.

First Winged Race Automotive

What Chaparral is finest identified for are its audacious winged vehicles. Till Jim Corridor got here alongside, vehicles had been designed to be slippery, however the advantages of aerodynamic downforce had not been used. Corridor realized the upside of elevated grip far outweighed any further drag it created.

The Chapparal 2C was the primary to have a wing, and for added measure, it was moveable. The 2C’s wing was smaller and sat low on the again finish. Do you keep in mind how the motive force’s left foot was free? It now had a brand new job: transferring the rear wing angle. On the straights, the motive force would put it within the flat place, and in corners, it could flip up, therefore it was nicknamed the “flipper.”

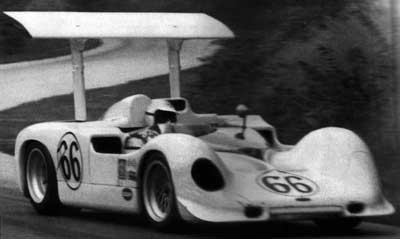

The Chaparral 2E had the enduring elevated wing which created a sensation. The large airfoil was hoisted above the automotive on a pair of three-feet lengthy struts. Once more, it was moveable so the motive force would feather the pedal to flatten it out on the straights. When the pedal was launched, it returned to an angled place to use downward stress on to the rear suspension to extend cornering adhesion.

The wing was the eyecatcher, however the 2E had different much less seen options. The radiators had been moved from the entrance to a mid-mounted place. This allowed air to be channeled by means of the entrance finish to create front-end downforce. When the aforementioned pedal was depressed, these channels had been additionally closed off for extra straight line effectivity. Phil Hill described it this manner, ”With the wing you may out-brake everyone, you may out-corner everyone, [and] you may drive beneath them. It actually did really feel prefer it had freak street holding.”

The 2E was the quickest automotive on the grid by an excellent measure, nevertheless it was sadly unreliable. Of the 5 races it began in 1966, it grabbed solely a single victory at Laguna Seca. Nonetheless, it was the start of the aero revolution that may rework automotive design and efficiency.

First Floor Results

Sadly, the improvements generated a backlash. Different vehicles tried to unexpectedly mimic Chaparral’s ideas. Wings had been banned after quite a few failures led to horrible high-speed crashes. Fairly than an issue, it was a possibility.

Jim Corridor devised a approach to generate the identical downforce sans exterior airfoils with a brand new idea known as floor results. By creating low air stress beneath the automotive, the ambiance will push the automotive to the bottom (though we want to consider it as sucking it to the bottom).

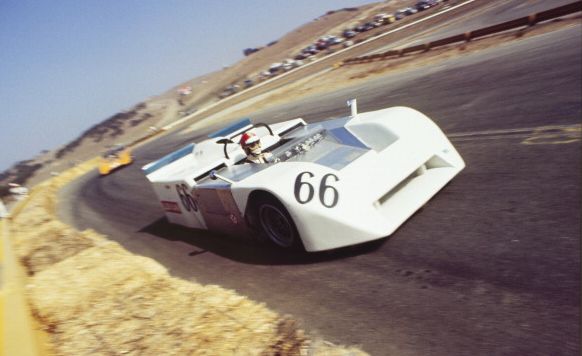

The novel Chaparral 2J was constructed for the 1970 Can-Am season and from the surface appeared odd. One journalist mentioned it appeared just like the crate it was shipped in.

The 2J had two 17-in followers powered by a 2-stroke auxiliary engine. Across the backside was a skirt that “sealed” the automotive to the monitor and the suspension was designed to maintain the automotive at a relentless distance from the monitor whatever the velocity or cornering load. The suction generated a whopping 1.5 g of downforce, which was fixed whatever the automotive’s velocity.

The 2J was a monster within the Can-Am collection that 12 months. It certified two seconds per lap quicker at every race and secured each pole place — all of the whereas making a screaming sound that turned it into an on the spot fan favourite. The draw back was it was unreliable so the 2J solely secured one victory in its solely 12 months of racing. The governing physique promptly banned floor results after the 1970 season.

The Finish of Chaparral

Chaparral folded after the 1970 season as a result of Jim Corridor’s disgust with the continual efforts of his competitors and governing our bodies to ban his developments. He was manner forward of his time and the remainder of the paddock couldn’t deal with it. “If I can give you a greater mousetrap that’s inside the rules, I must be allowed to make use of it,” Corridor declared in October 1970.

In a 1968 race at Las Vegas, Corridor had an accident that badly injured his knees. He was unable to stroll for six months and the injury had a long-lasting impression on his driving capacity. With the sanctioning physique headwinds and his impaired capacity to drive, Corridor closed down Chaparral after the 1970 season. It was an eight-year interval stuffed with steady improvements out of a tiny store in Texas.

After Chaparral, Corridor turn into an Indycar group proprietor in partnership with Carl Haas in 1978. Of their first season, the group was an instantaneous success being the one group to ever win the Triple Crown of the Indianapolis 500, Pocono 500, and California 500 with Al Unser Sr. driving. He remained a fixture within the paddock till shutting down the group in 1996.

By way of race automotive design, there’s the time earlier than Corridor and the one after him. He made an indelible contribution to advancing how race vehicles labored by ushering within the energy of aerodynamics. Whereas his title is revered inside sure circles, he has not been feted almost as a lot as he deserves.

No Chaparrals had been ever offered and the complete assortment of survivors can at the moment be seen in a everlasting exhibition within the Chaparral Gallery on the Petroleum Museum in Midland, Texas.
